In stock
CPU Cooling
CP-SRV-1700-2U-220-A

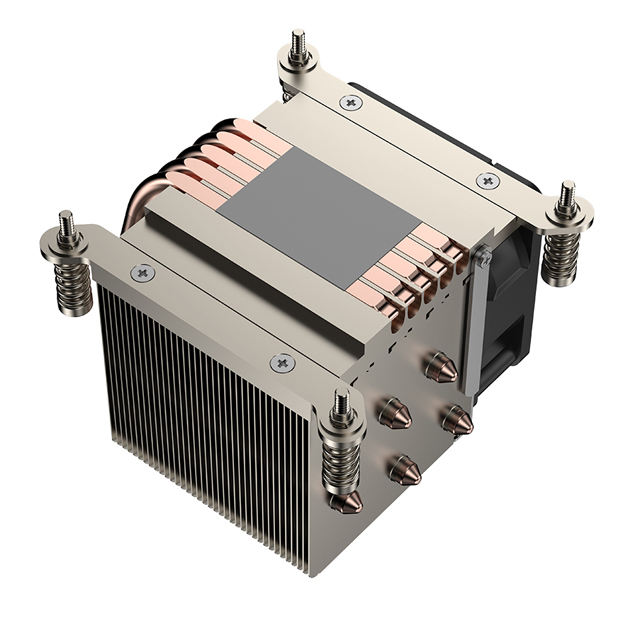

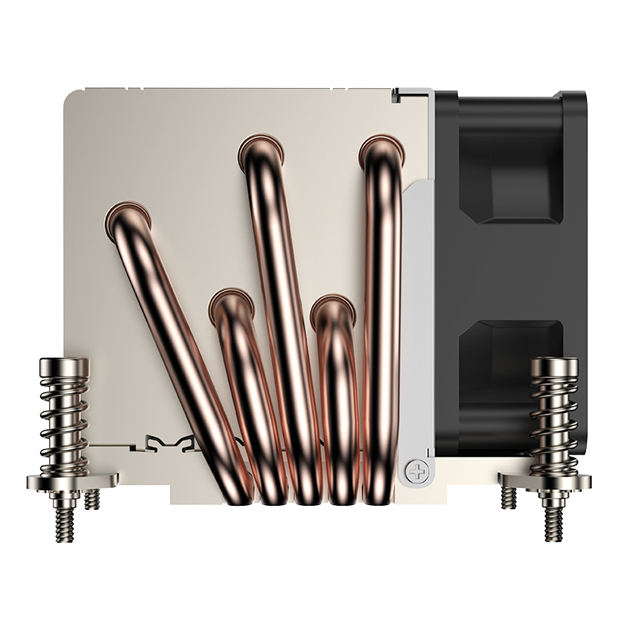

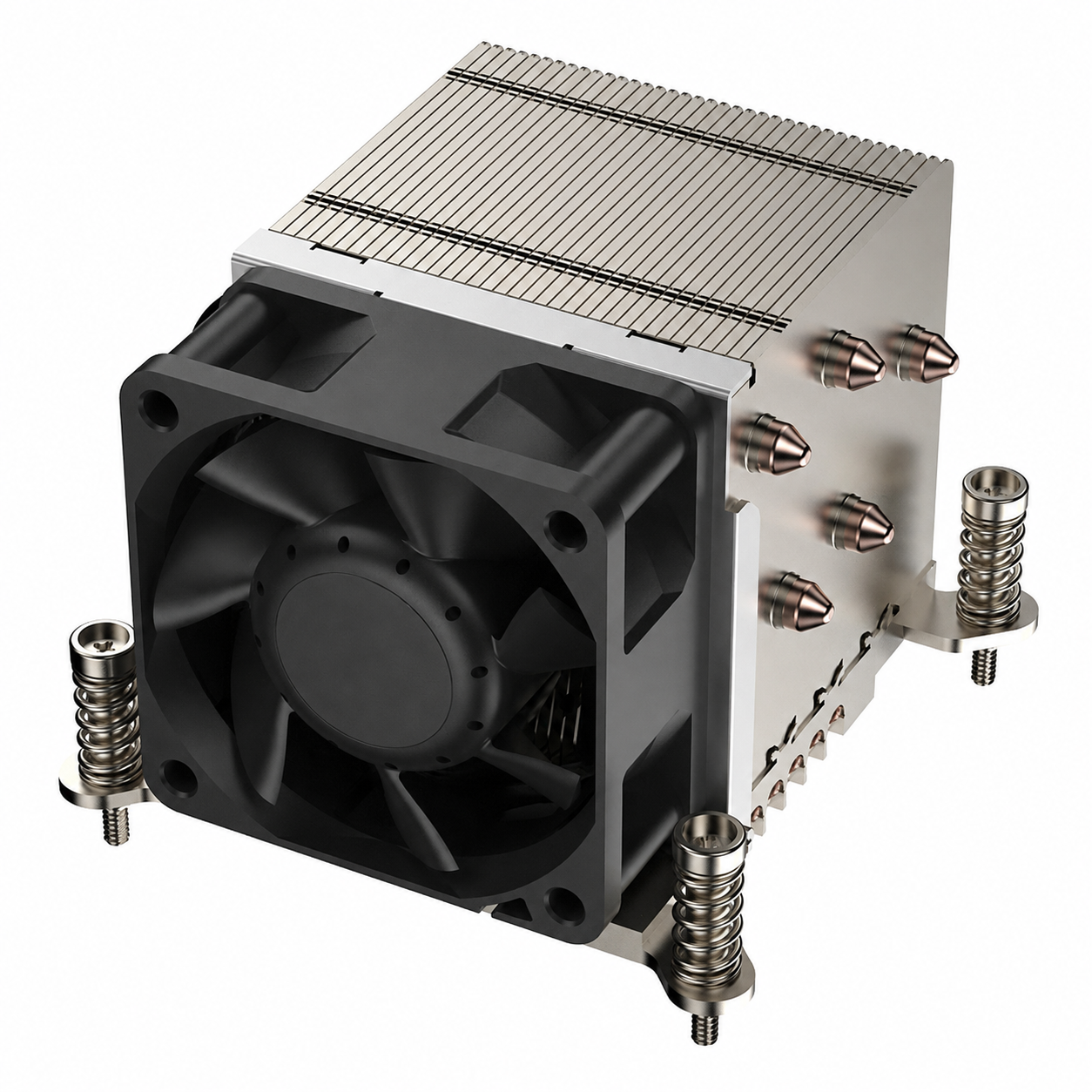

1700-2UR65 LGA1700 CPU Type 5 Heat Pipe High-Power Copper Aluminum Server Radiator Air Cooler for 2U Sever TDP 220W
CPU PlatformLGA1700, LGA1851
Power Interface4-Pin PWM
Noise52.5 dBA
Power (TDP)220 W
Air Volume47.2 CFM
2U active CPU cooling solution for Intel LGA1700 / LGA1851 platforms
Specifications
Identity
| Model Number | CP-SRV-1700-2U-220-A |
CPU Compatibility
| CPU Manufacturer | Intel |
| CPU Generation / Platform | Contact Engineering |
| Compatible Chassis Height | 2U |
Thermal and Mechanical
| Heat Pipe Count | 5 |
| Heatsink Material | Copper + Aluminum |
| Base Material | Copper + Aluminum |
| Cooler Dimensions | 90 x 90.5 x 67.7 mm |
| Weight | 0.442 kg |
Fan
| Cooler Type | Active air |
| Fan Included | Yes |
| Fan Dimensions | 60 x 60 x 25 mm |
| Connector | 4-pin |
| Bearing Type | Two-ball bearing |
| Operating Voltage | 12V |
| Fan Life | 5000 hours |
